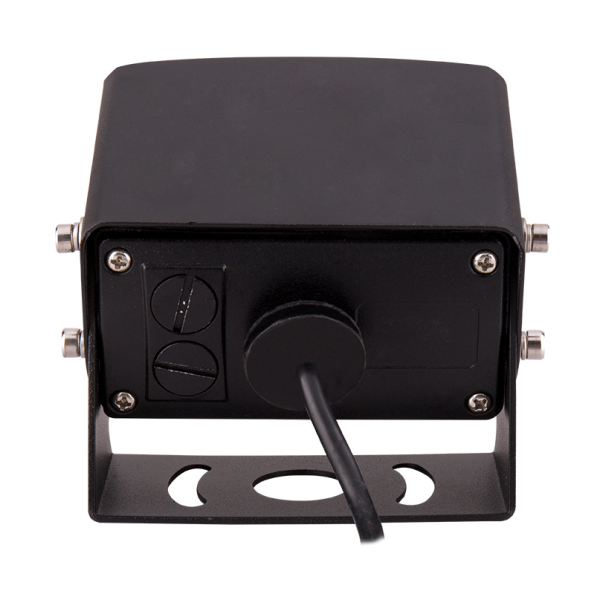

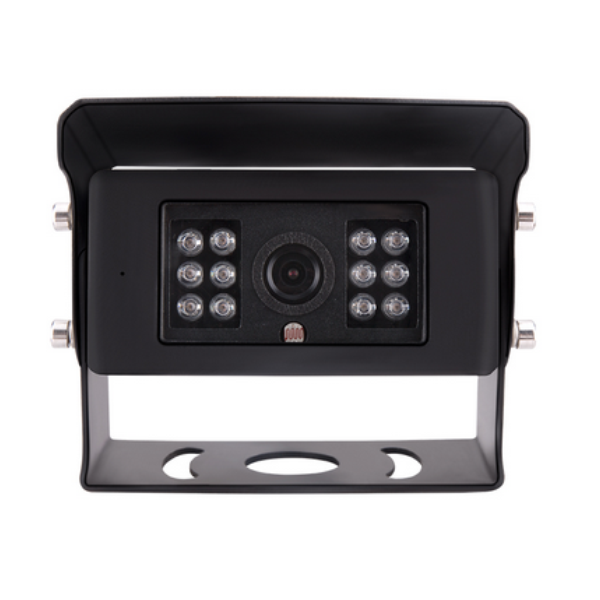

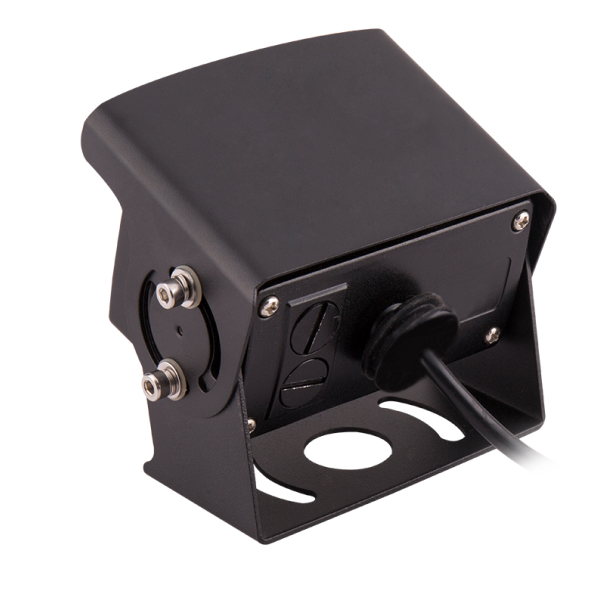

Waterproof Rear-view Camera (JY-6731)

Part No: JY6731
Image Sensor: 1/2.9 SONY
TV System: NTSC/PAL
Effective Pixels: 1920(H)×1080(V)
Sensing Area: 2.8μm（H）ⅹ 2.8μm（V）
Sync. System: Internal
Resolution: 200W
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Optional
IR LED Qty: 12PCS
Video Output: 1.0 Vp-p/75 Ohm
Scanning System: interlace
AGC: AUTO
Signal to noise ratio: Better than 48dB
White balance: AUTO
Gamma Consumption: 0.45
Electronic Shutter: AUTO
Backlight Compensation: AUTO
Power Supply: DC12V
Lens: 2.8mm
Lens Angle: 122°
Current Drain: 70±5mA
Operating Temperature: -20℃-70℃,RH 95% MAX
Storage Temperature: -30℃-80℃,RH 95% MAX

waterproof

Description

JY-6731 high performance waterproof camera is specially designed for trucks, engineering vehicles, agricultural machinery vehicles, the product is equipped with high pixel, large image sensor, effectively enhance the image quality. The waterproof grade is IP69K, the minimum illumination is 0.1Lux, 12 night vision infrared lights are built in, the effective infrared distance is 10 meters.
